Event analysis (Meloland)

This notebook uses the quakeio Python package to parse and process a suite of ground motion files.

Meloland Overpass schematic placement of sensors

import numpy as np
import quakeio
import quakeio.processing as spec

The following file contains a collection of ground motions in the CSMIP Volume 2 format from the 1979 Imperial Valley earthquake (obtained from www.strongmotioncenter.org).

file_name = "../dat/imperialvalley79_ce01336p.zip"

The signature of the function quakeio.read is as follows:

def read(filename: str, format: str = None, **parser_options): ...

where format is a string indicating the file format (see tool documentation for available formats). In this case the format argument can be ommited because the CSMIP archive parser is the default parser for files with a .zip extension.

collection = quakeio.read(file_name, exclusions=["filter*"])

The variable collection now holds a QuakeCollection. Once the collection has been parsed, individual components can be extracted using the .at method of QuakeCollection

component = collection.at(file_name="chan02.v2".upper())

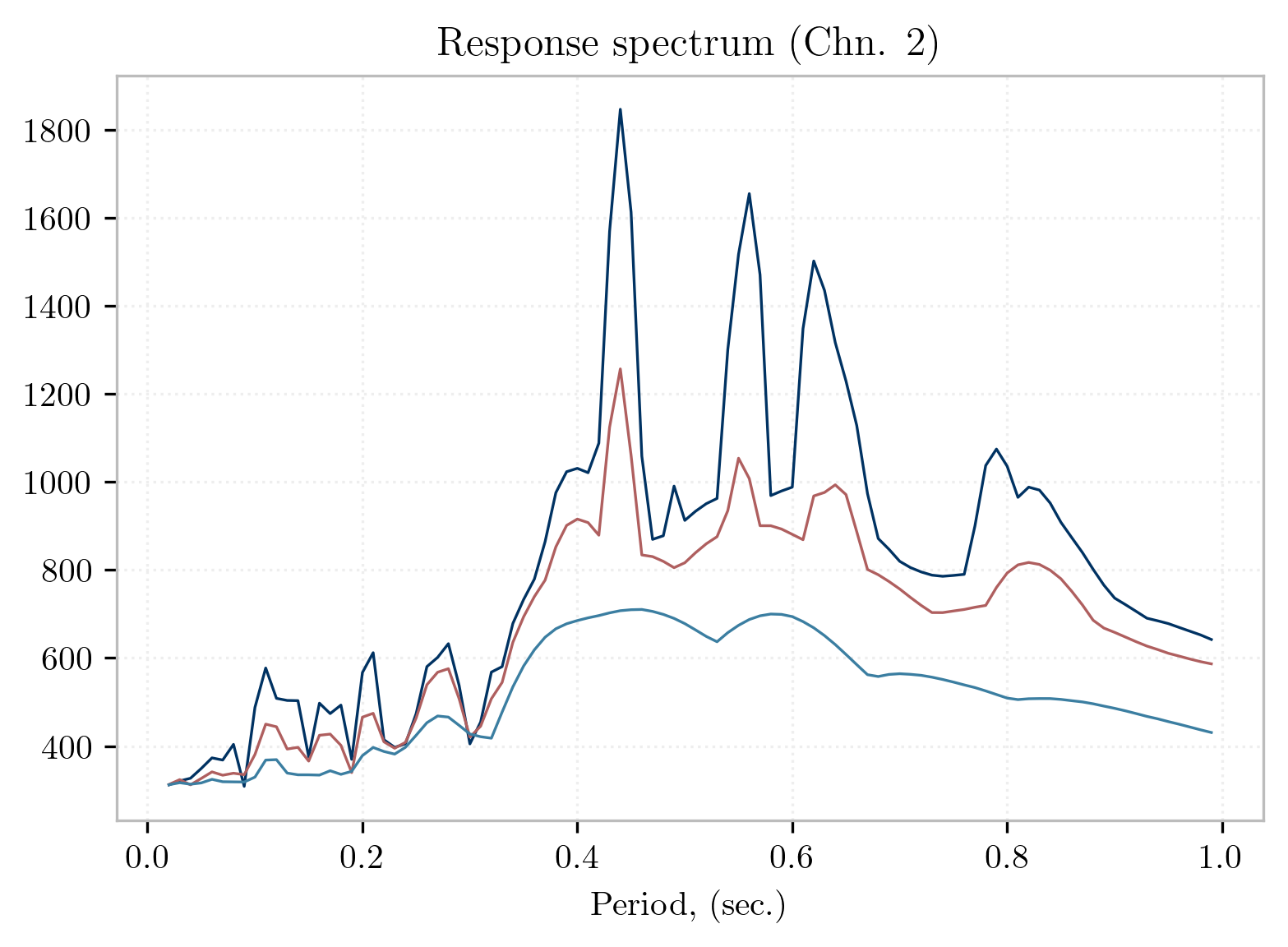

Acceleration Spectra

spec.Spectrum(component, damping=[0.0, 0.01, 0.05]).plot();
