System Identification (Painter Street Overpass)

Painter Street Overpass (Rio Dell Hwy)
import numpy as np
import quakeio
import quakeio.processing as spec
# file_name  = "../dat/tomsplace_26nov2006_ce54730p.zip"
file_name = "../dat/RioDell_Petrolia_Processed_Data.zip"
collection = quakeio.read(file_name, "csmip.zip")

System Identification

Case 1 : Input in transverse direction, output in transverse direction

Input channels: 3; Output channels: 7

Case 2 : Input in longitudinal direction, output in longitudinal direction

Input channels: 1; Output channel: 11

Case 3 : Input in longitudinal direction, output in vertical direction Considering that the bridge is similar to a frame in the longitudinal direction, shaking along this direction results in long. translational accelerations as well as bending & rotation of the deck, causing vertical accelerations on deck nodes. Case 3 makes use of this behavior to identify the long. mode. The influence vector of long. ground motions on vertical accelerations is zero, which is a concern, but this is still a useful case.

Input channels: 1; Output channels: 6

Case 4 : Input in longitudinal direction, output in longitudinal & vertical directions. This is a case that can only be applied to OKID-ERA-DC. Therefore, it is the same as Case 3 in TFE, and similar to Case 3 in OKID-ERA-DC, except that the output channels is a combination of longitudinal & vertical channels.

Input channels: 1; Output channels: 6

Case 5 : Input in vertical direction, output in vertical direction

Input channels: 2; Output channel: 6

cases = {
    "1": ("3",  "7"),
    "2": ("2", "11"),
    "3": ("1",  "6"),
    "4": ("2",  "6")
}

The TransferFunction class is used to compute the transfer function between two channels at a specified damping ratio.

for pair in cases.values():
    inp = collection.at(channel=pair[0])
    out = collection.at(channel=pair[1])

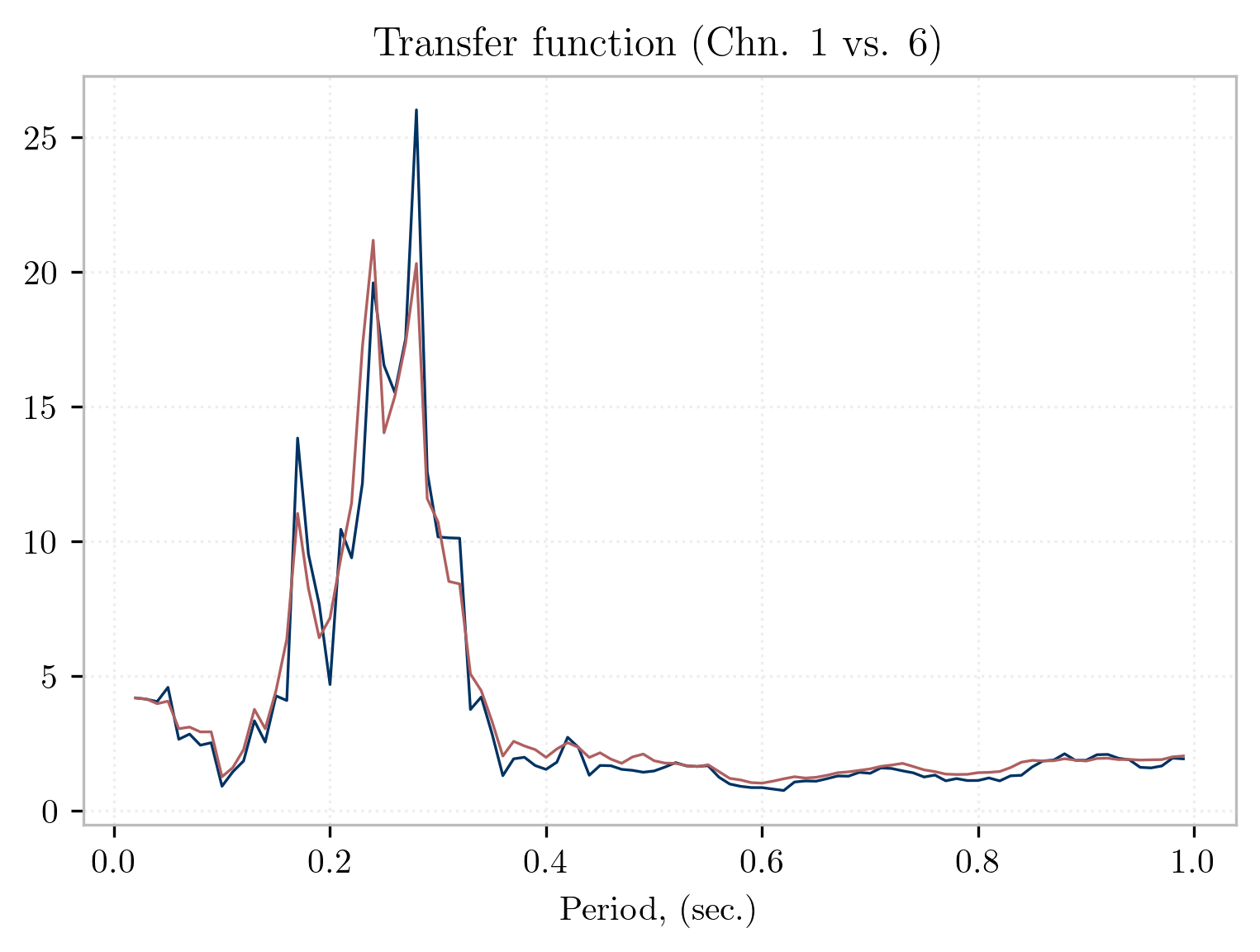

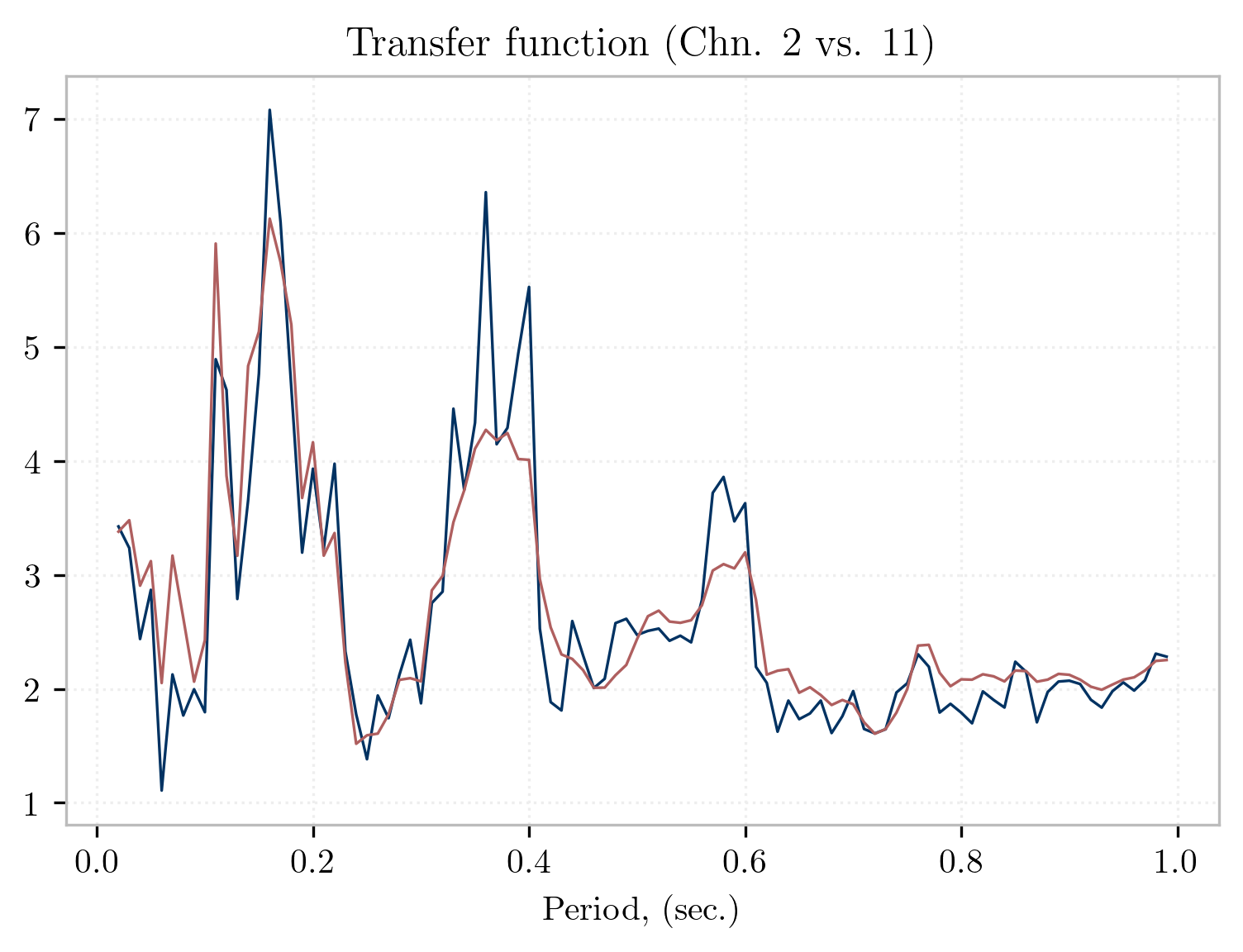

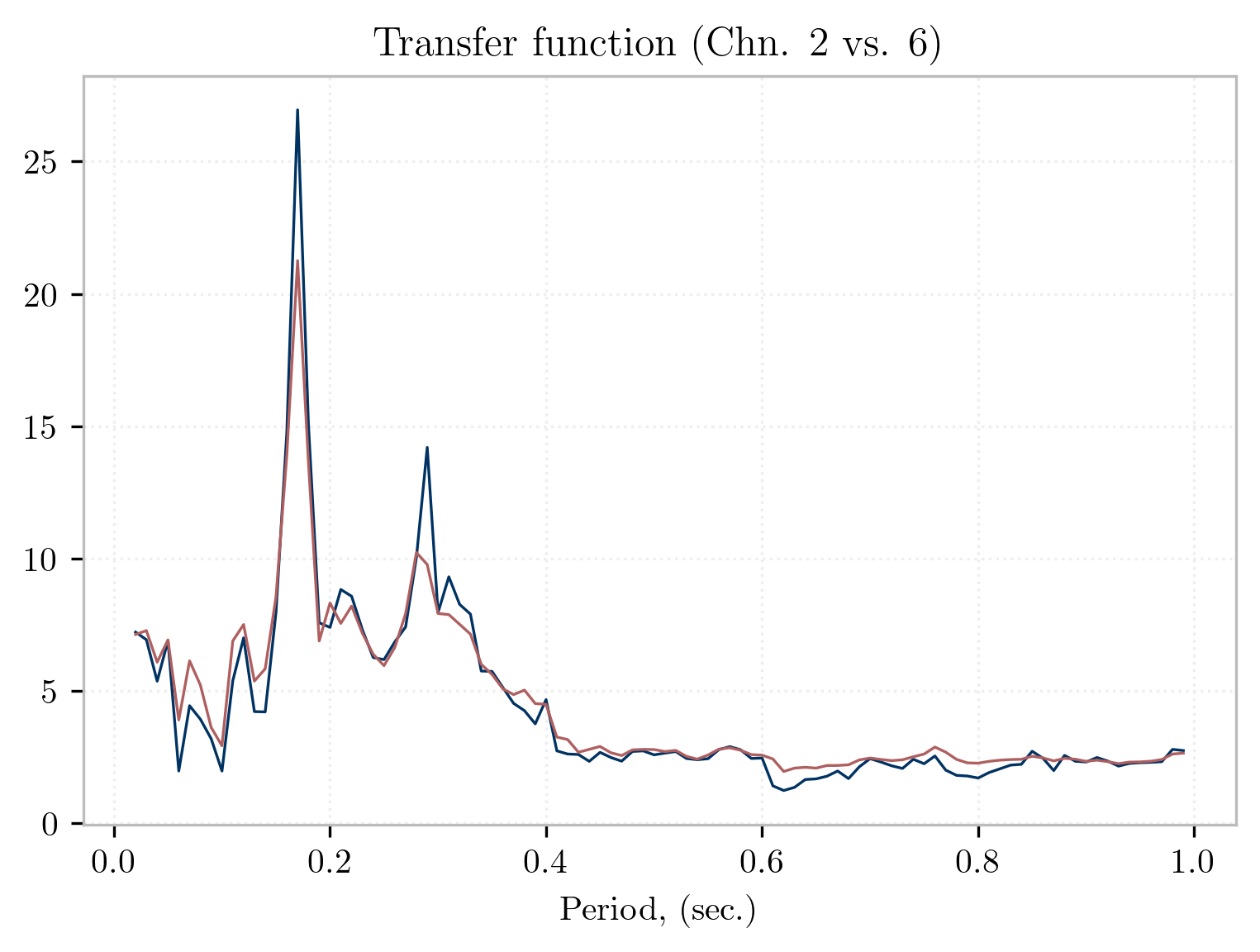

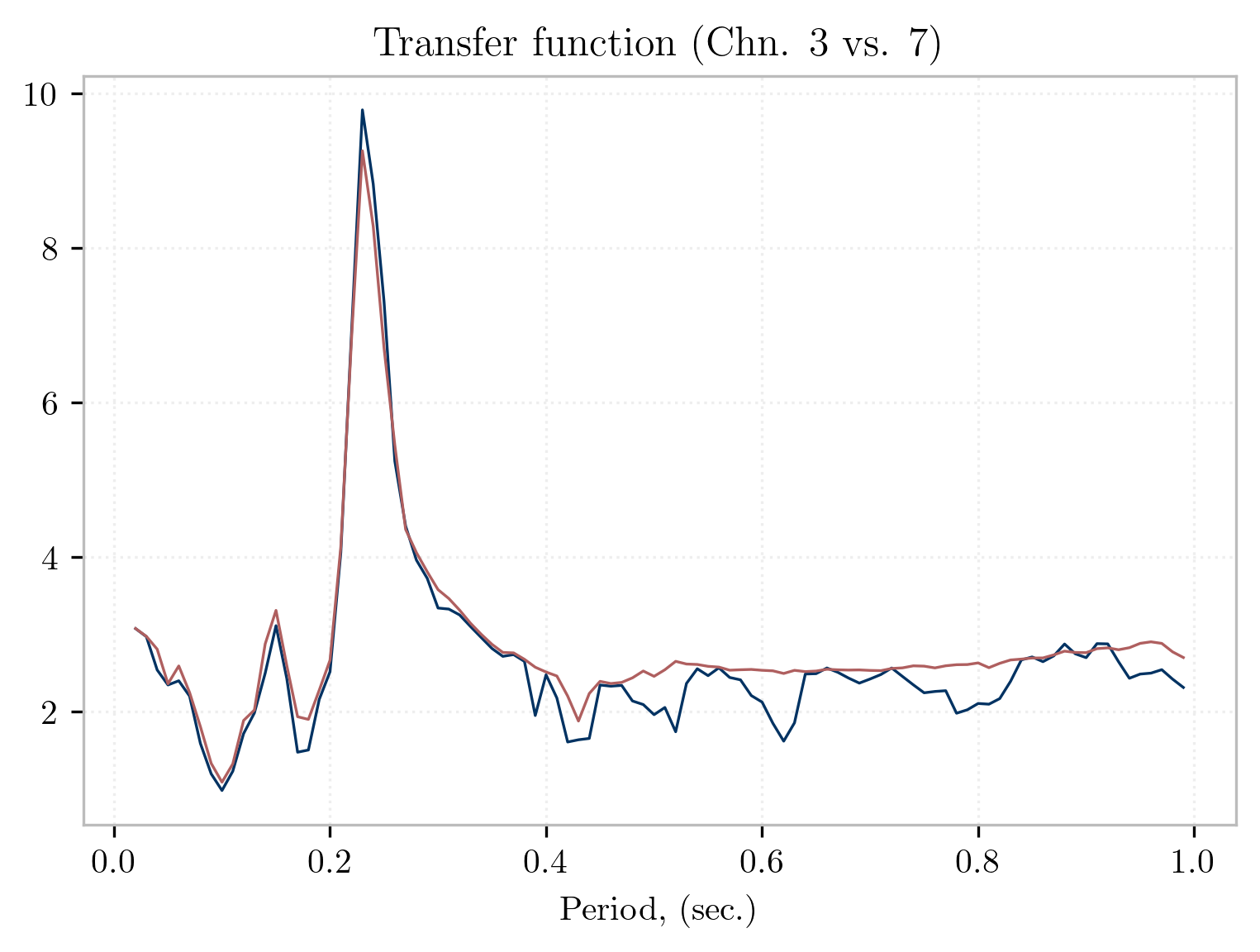

    tf = spec.TransferFunction((inp,out), damping=[0.001, 0.01]).plot()

for component in collection.components:

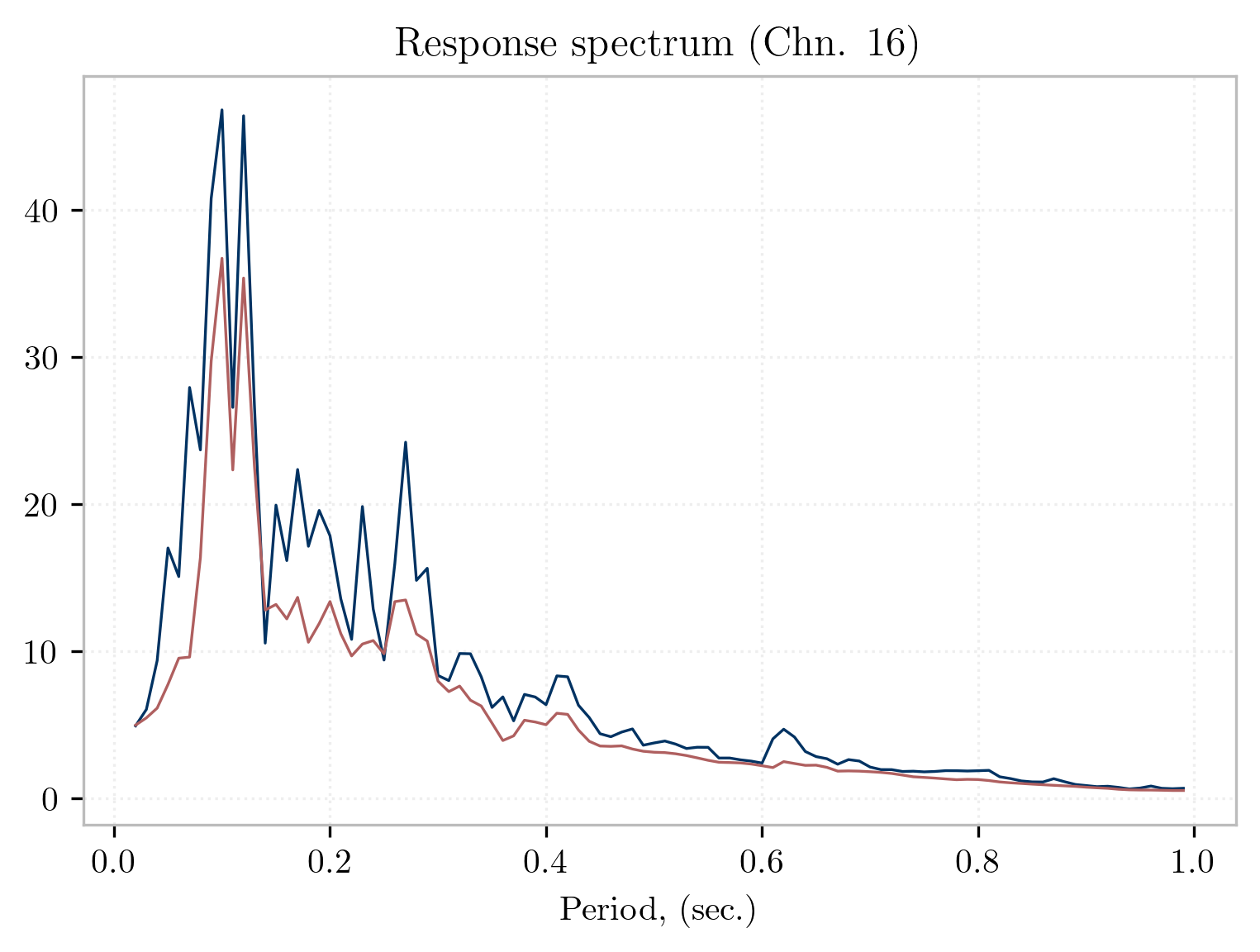

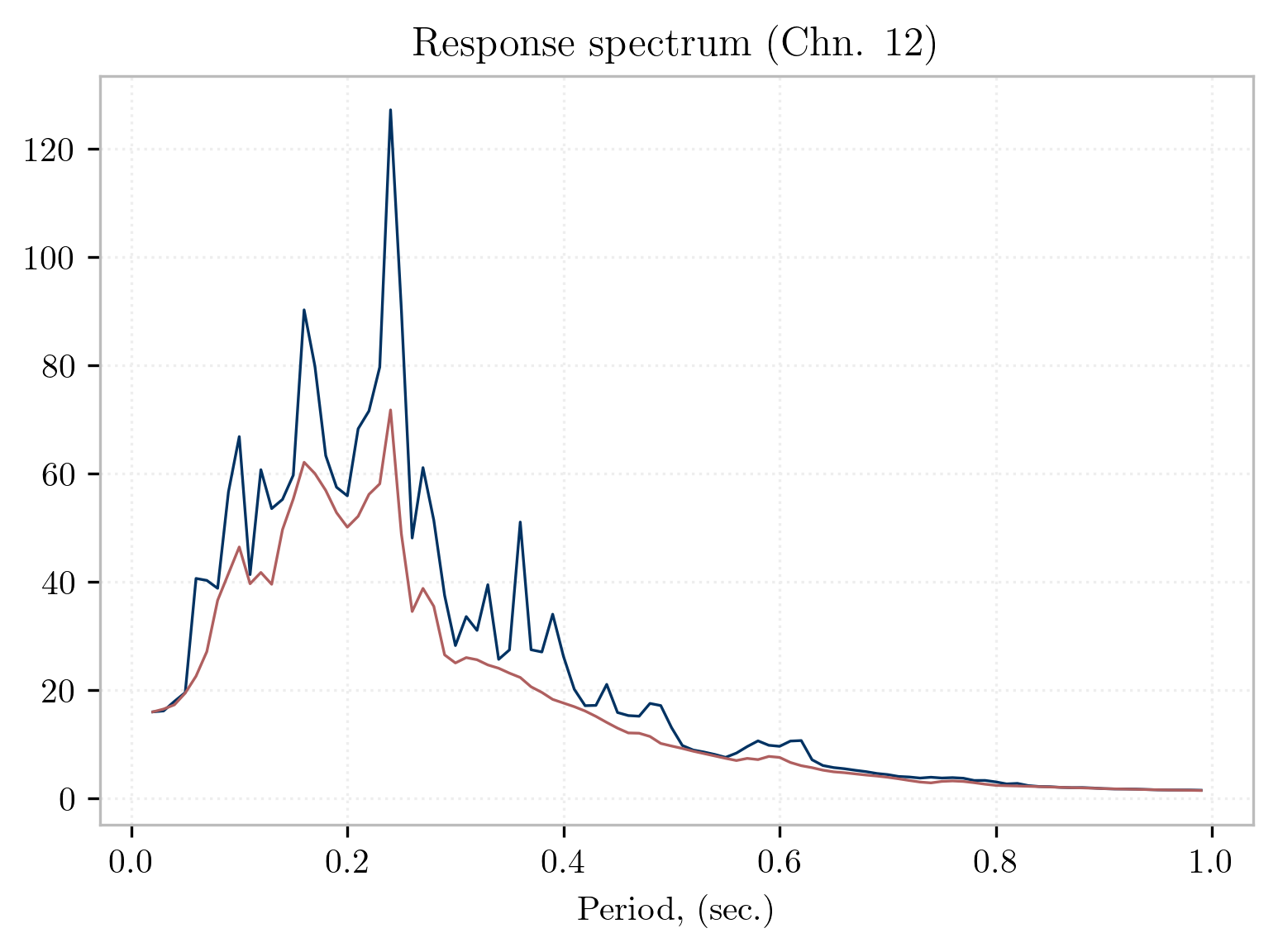

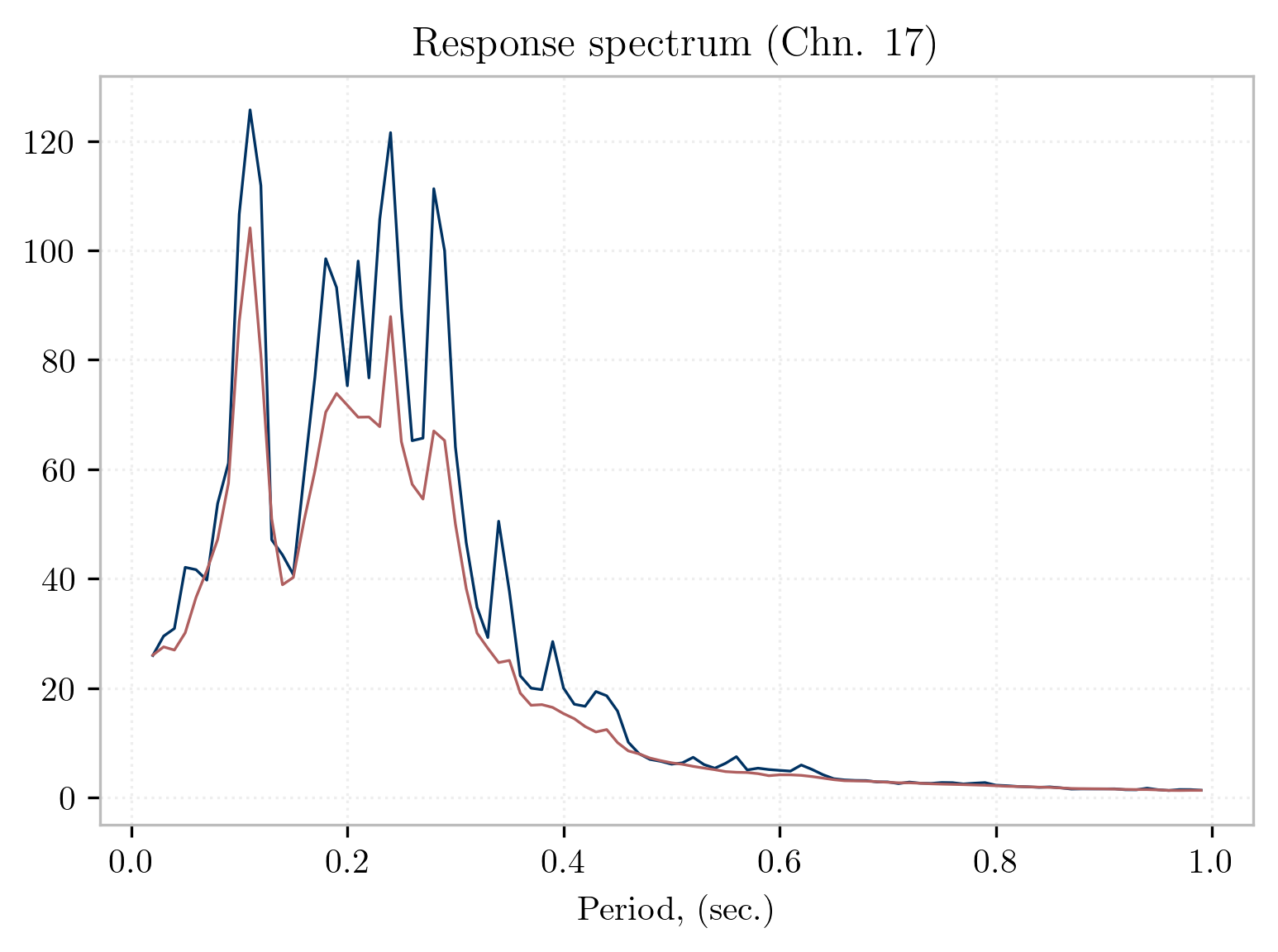

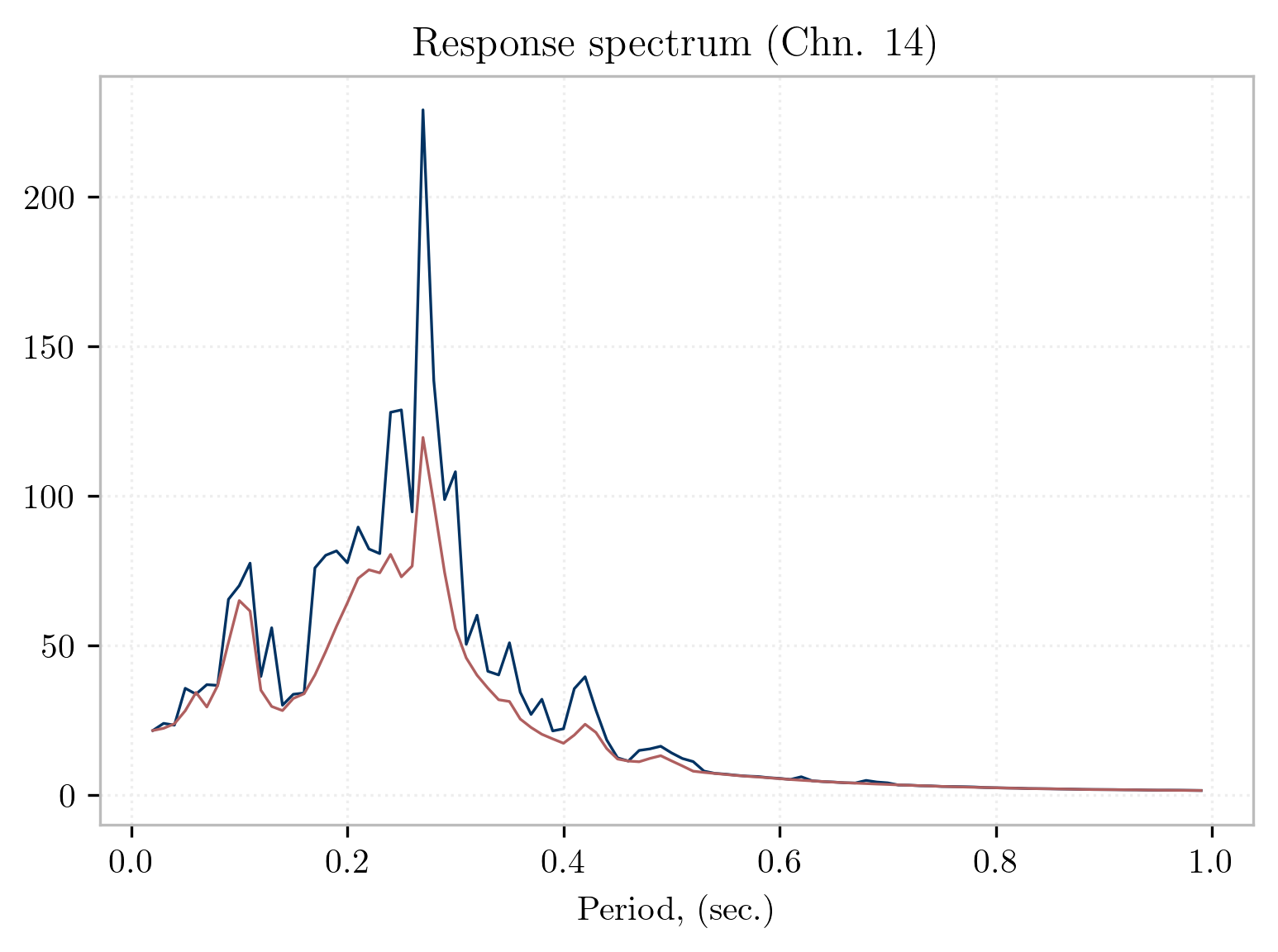

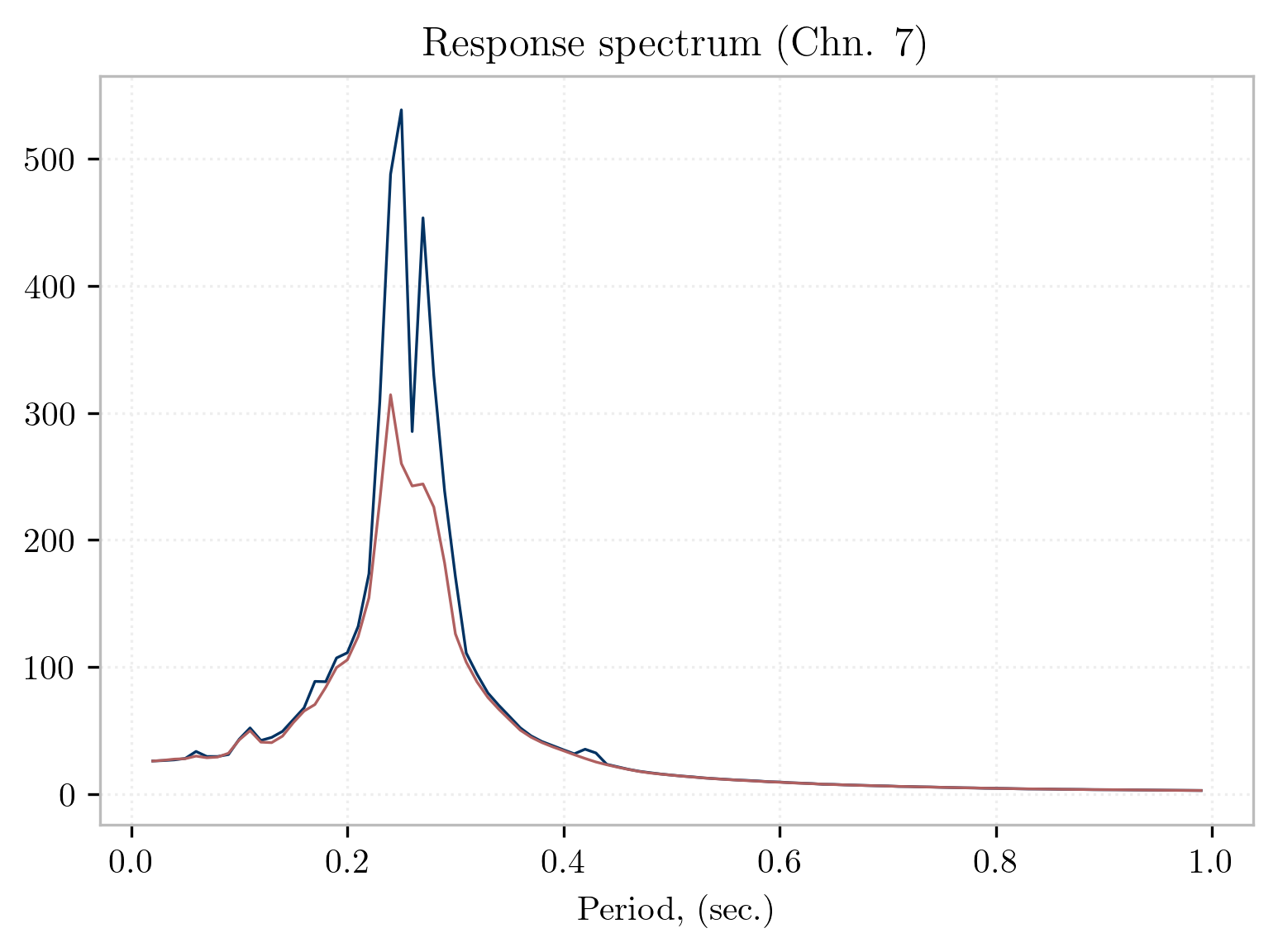

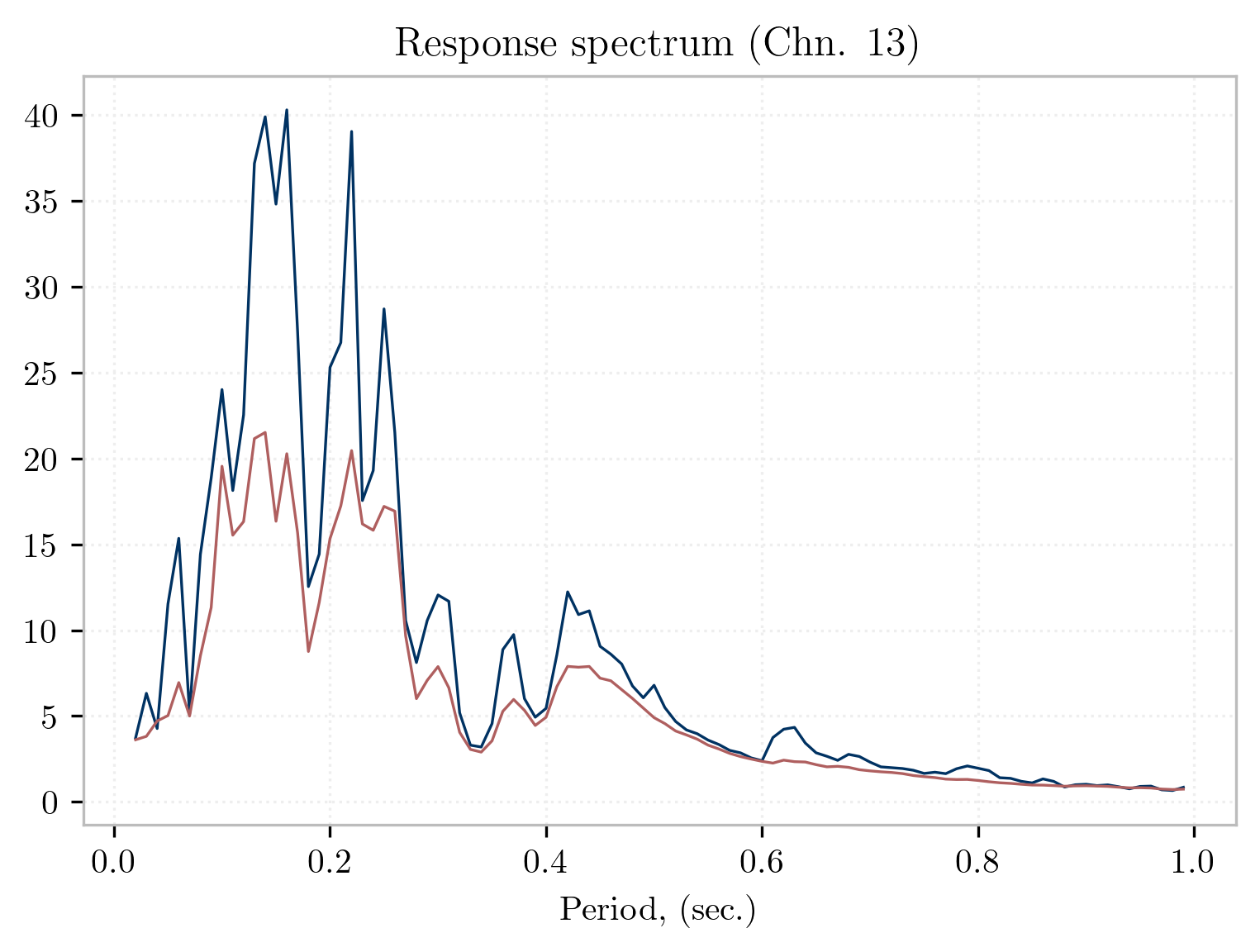

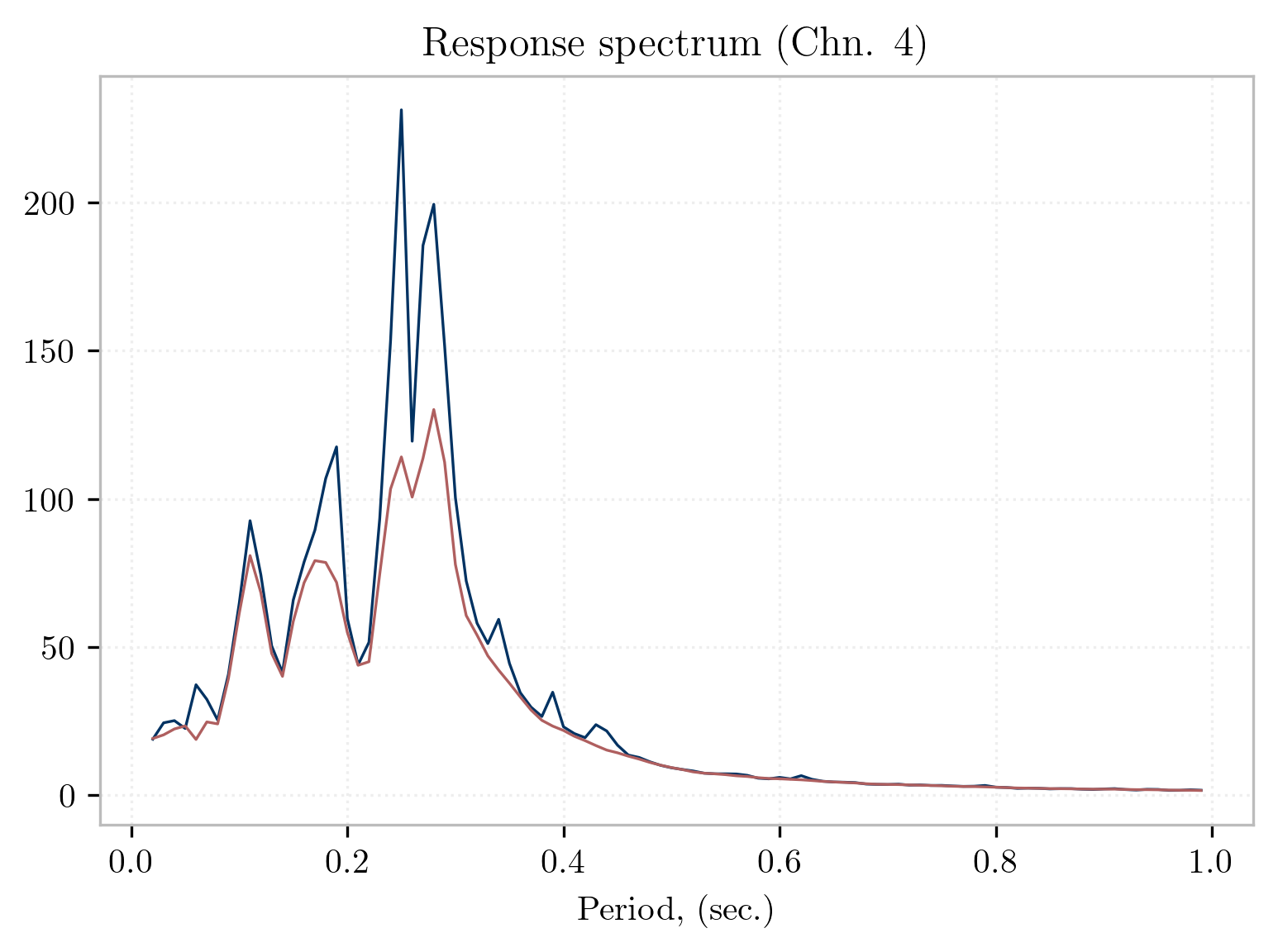

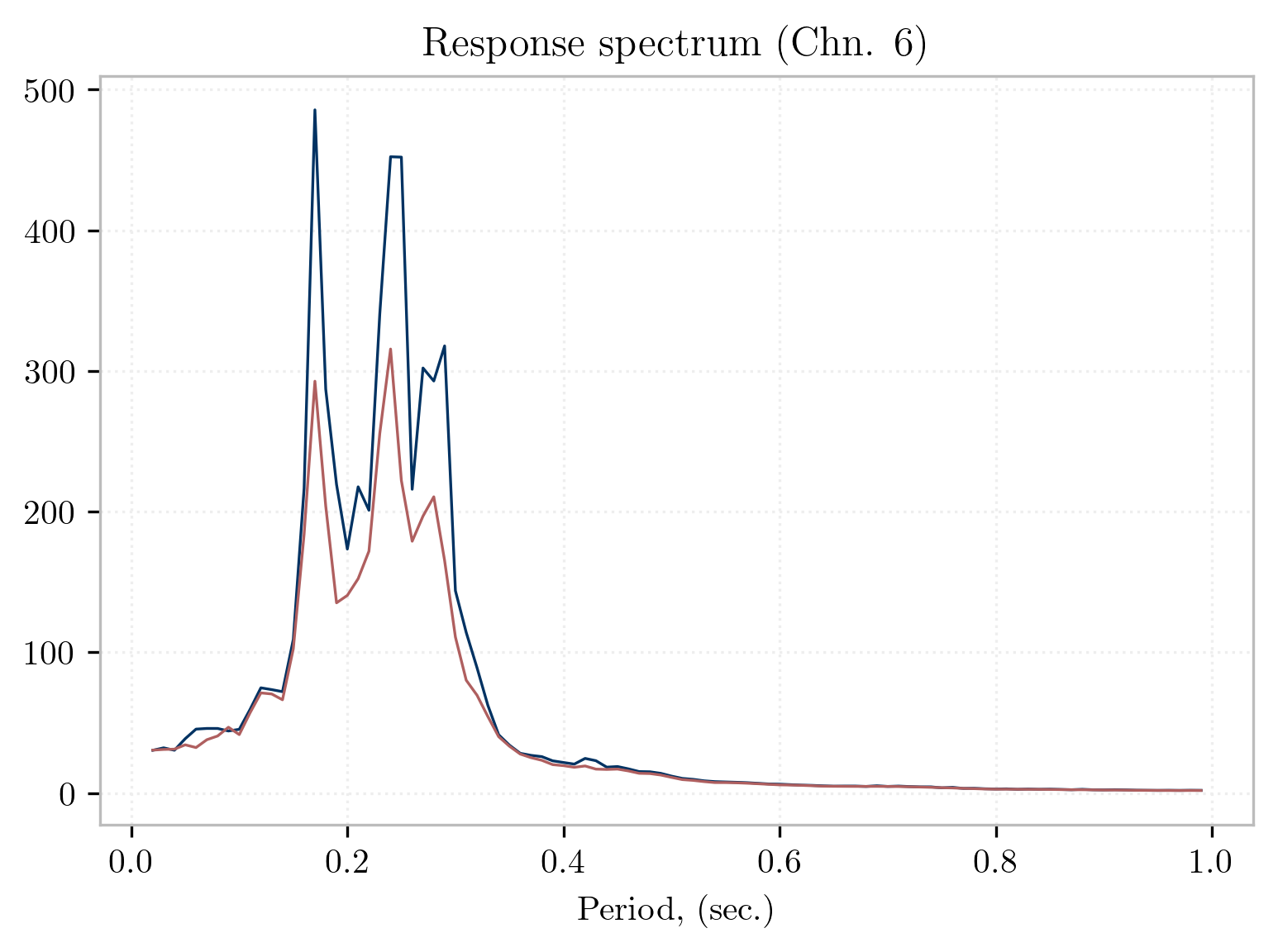

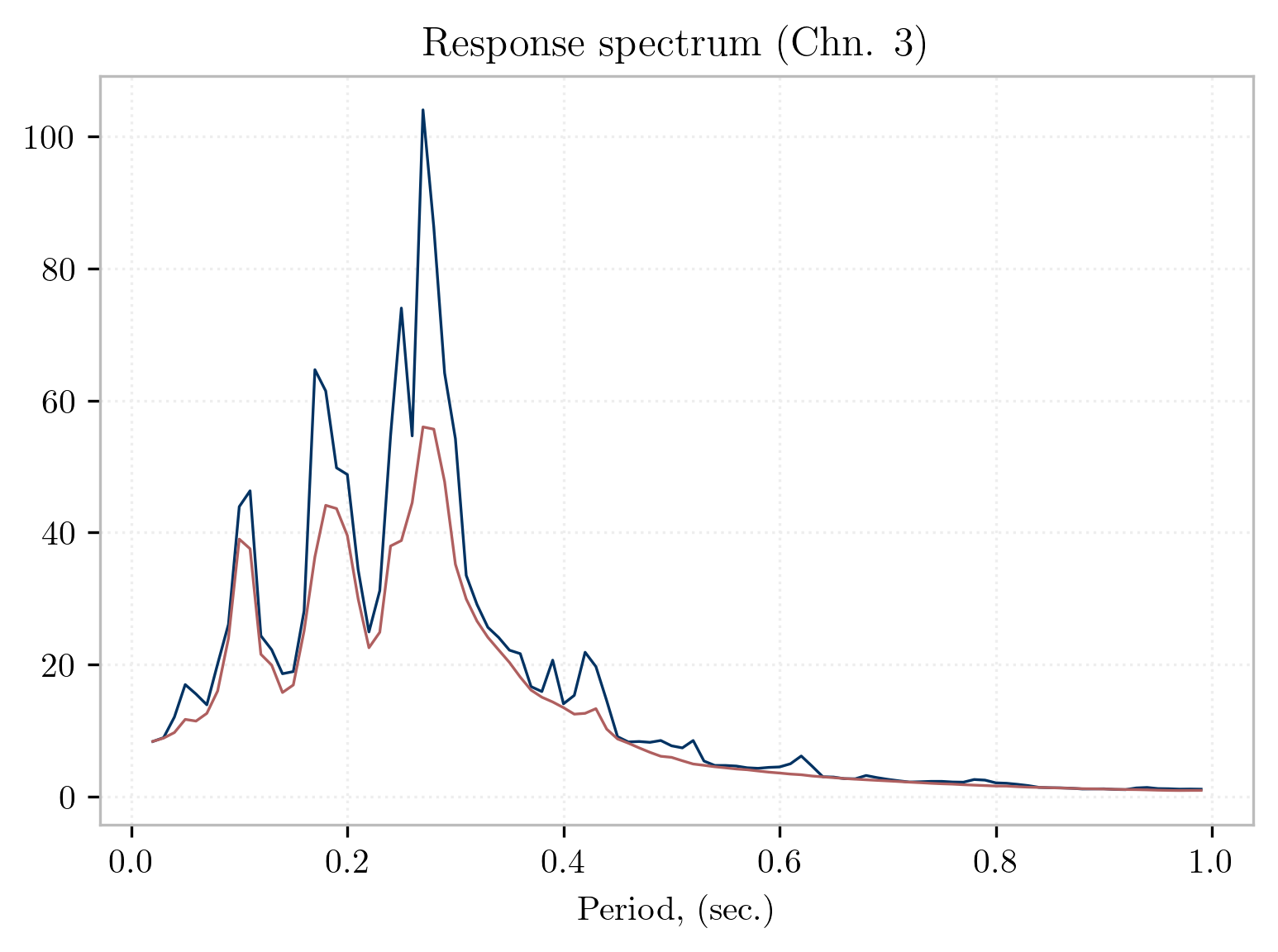

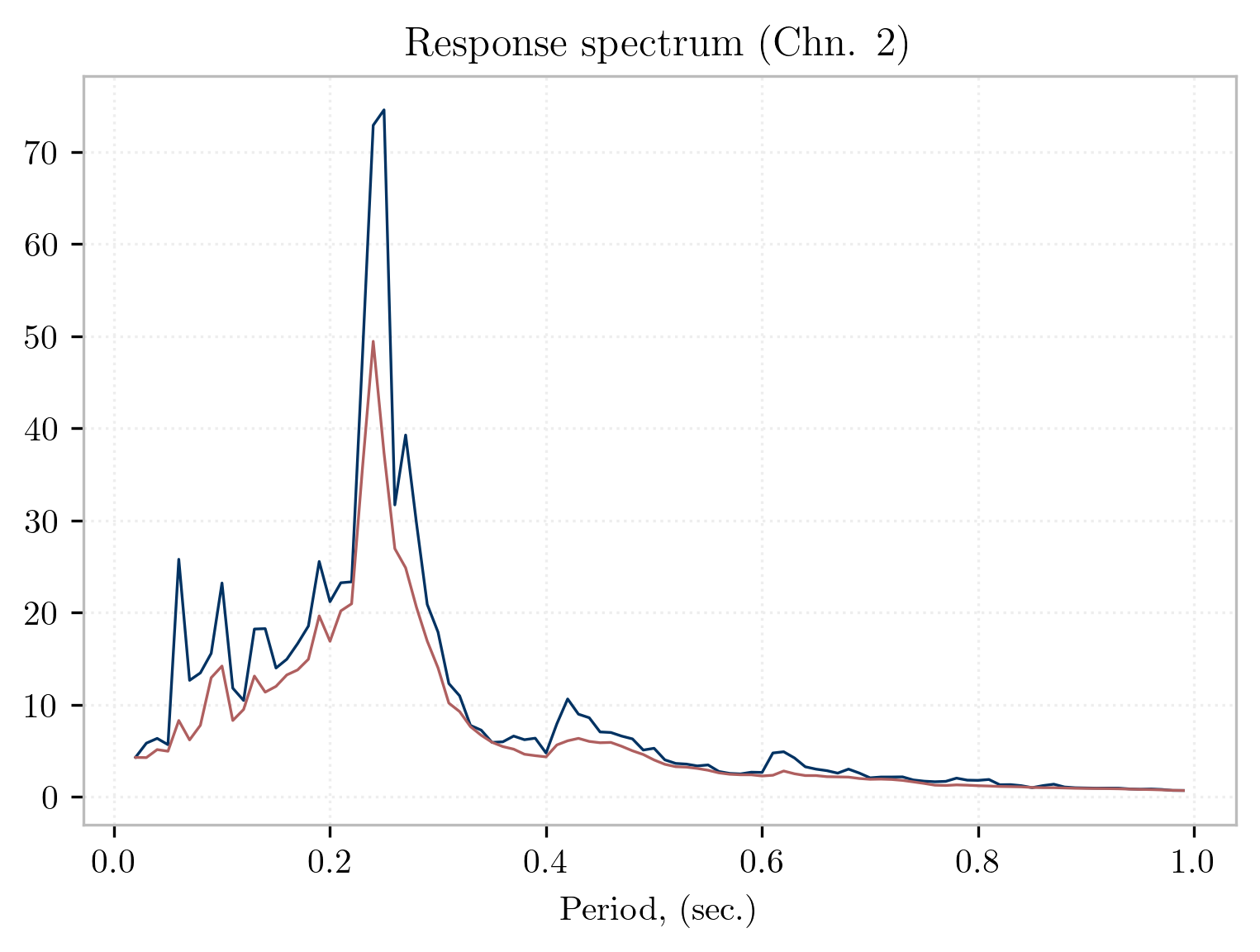

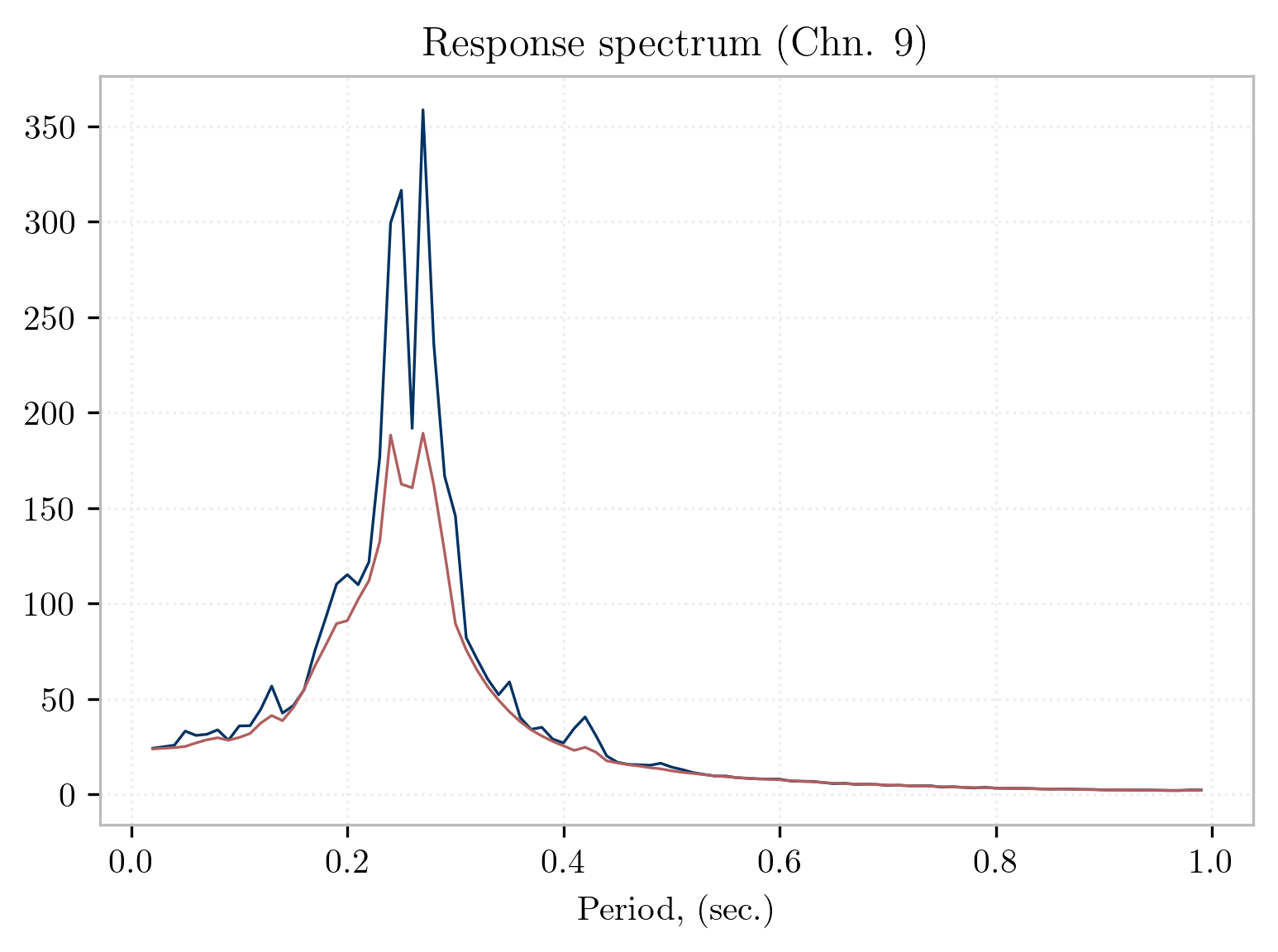

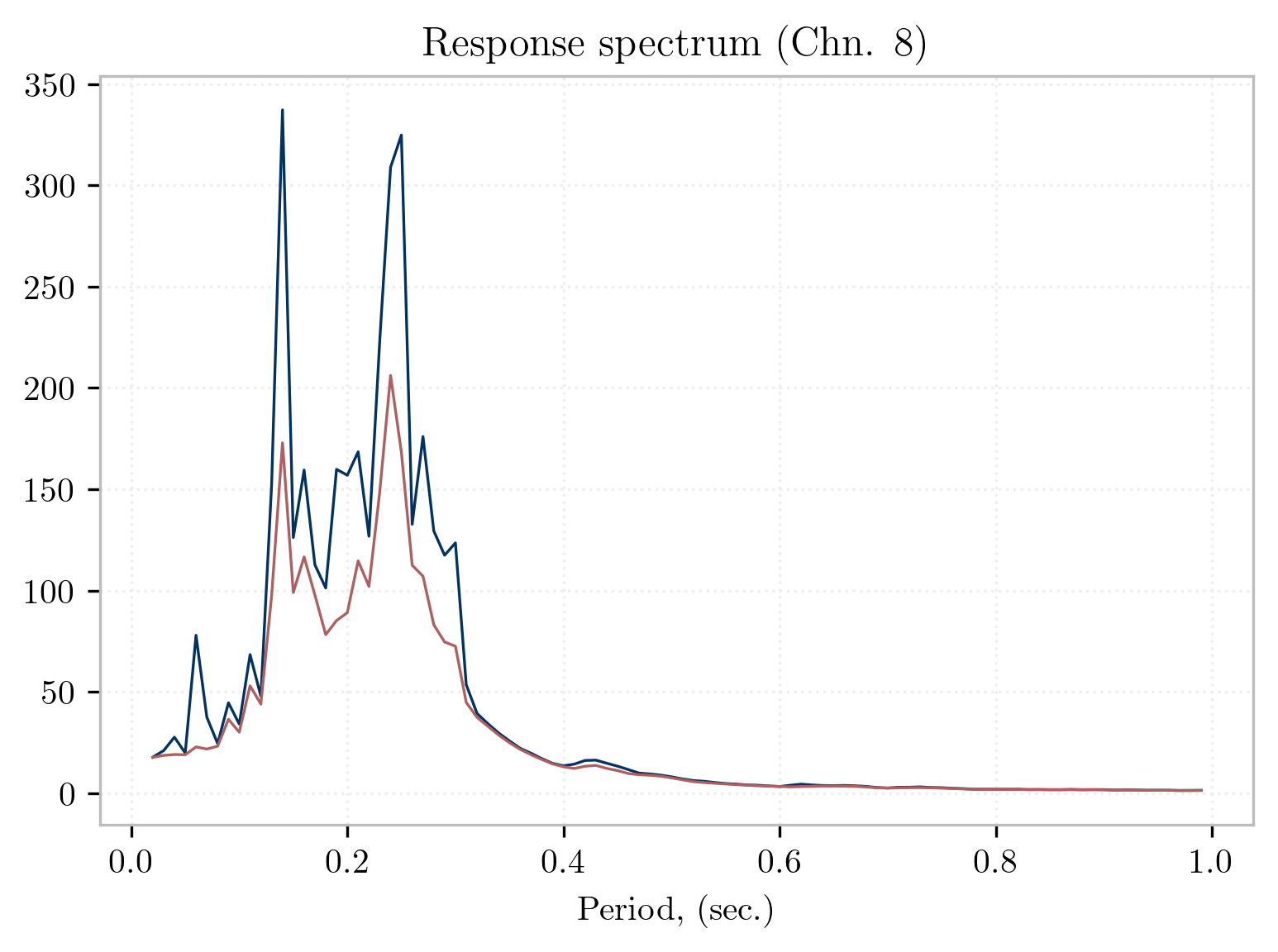

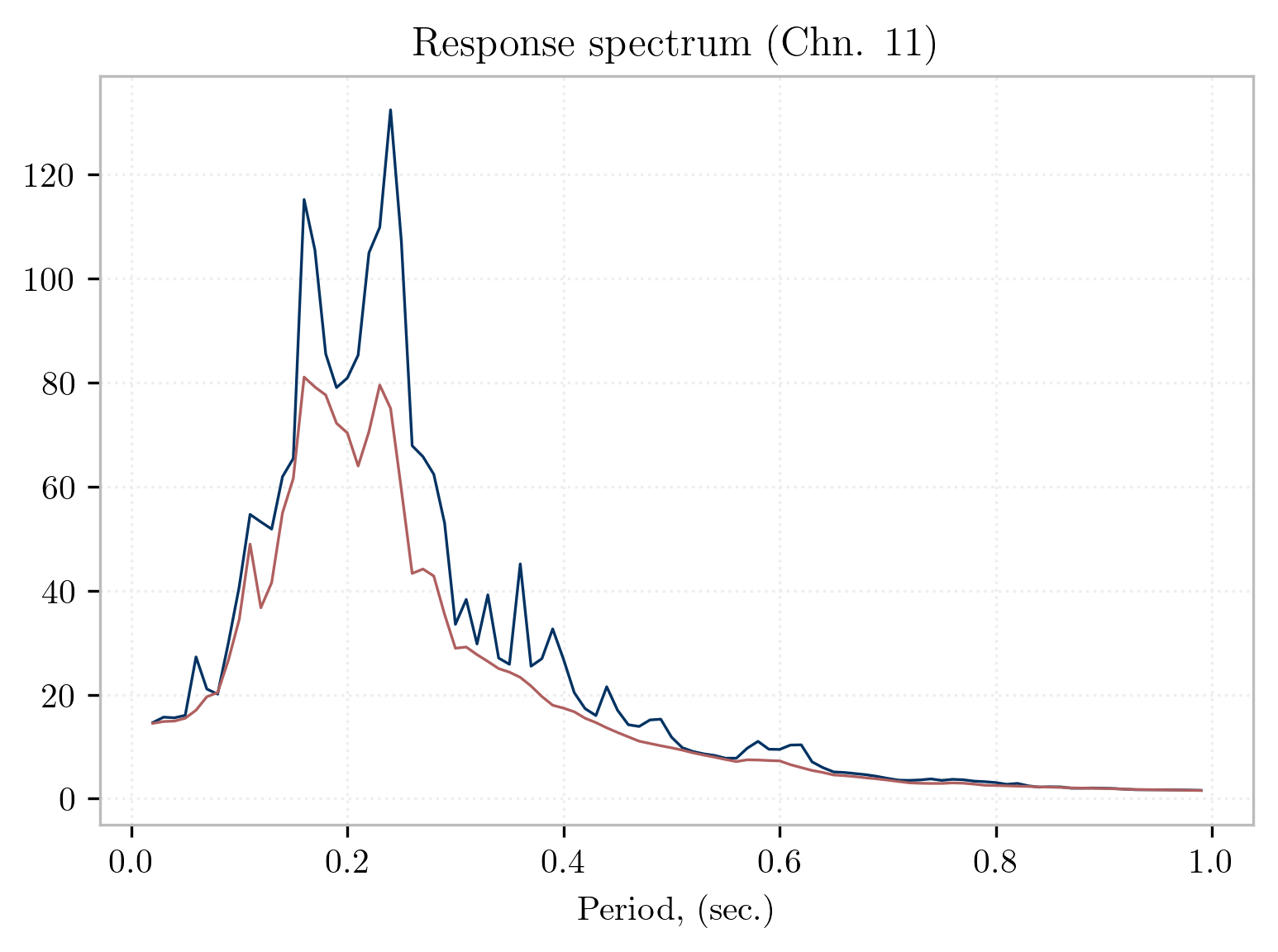

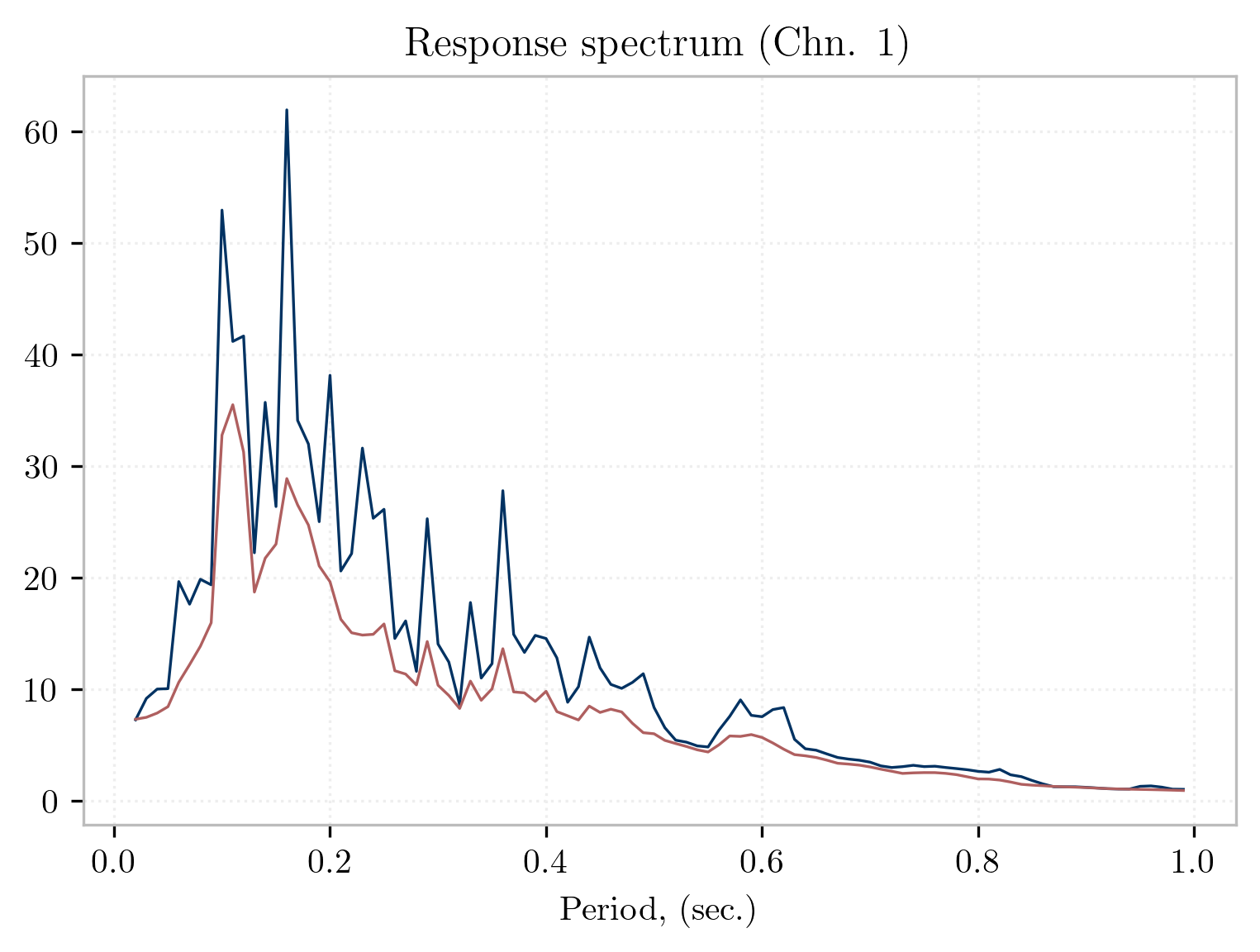

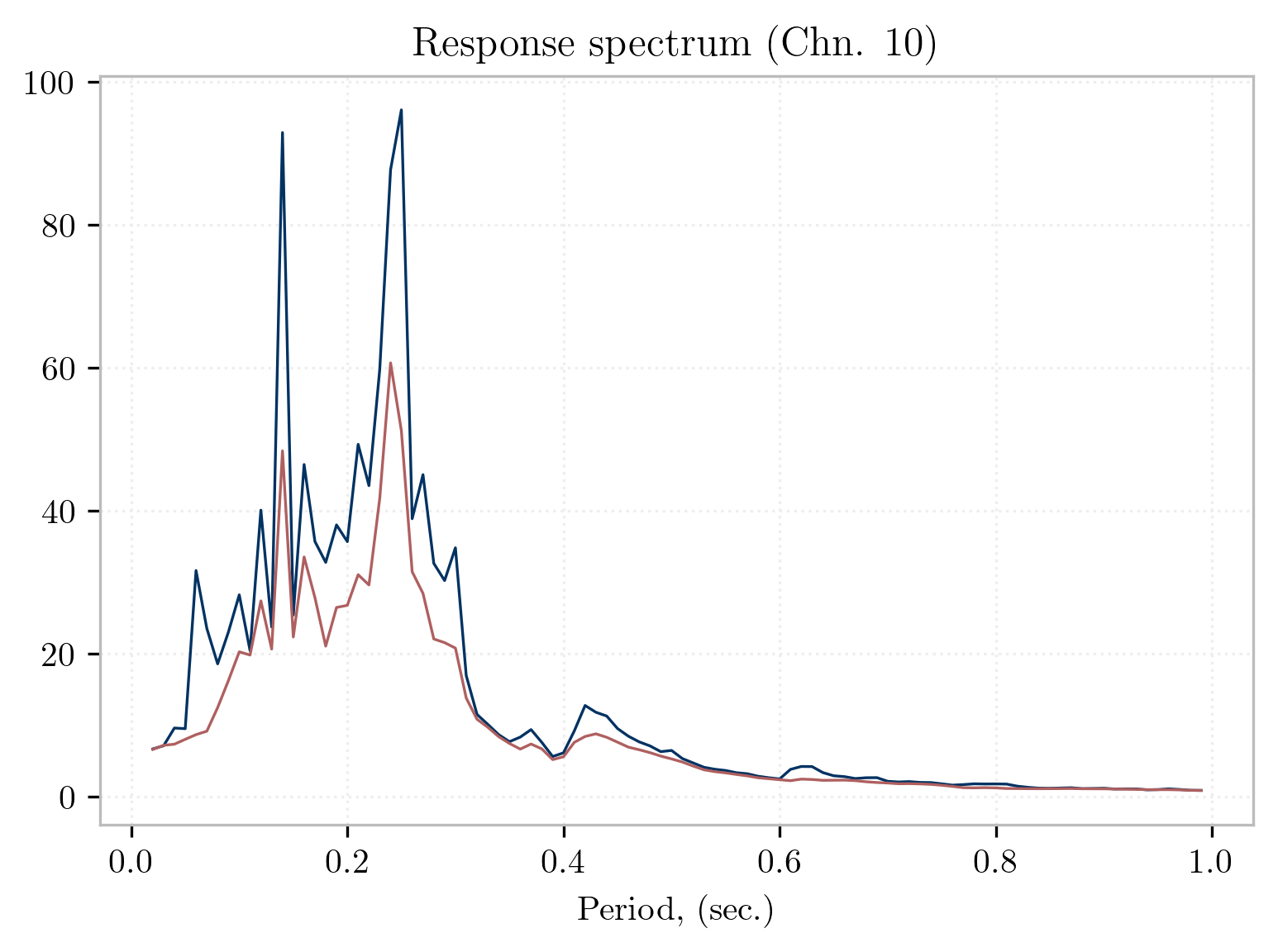

    spec.Spectrum(component, damping=[0.0, 0.01]).plot()

spec.Spectrum(bot.long, damping=[0.0, 0.01]).spect(bot.long).shape
---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
/tmp/ipykernel_2714/326875978.py in <module>
----> 1 spec.Spectrum(bot.long, damping=[0.0, 0.01]).spect(bot.long).shape

NameError: name 'bot' is not defined
motion.long.veloc.data[-1]
component.keys()
